Duplo DC-446 Automatic Ducreaser Creaser

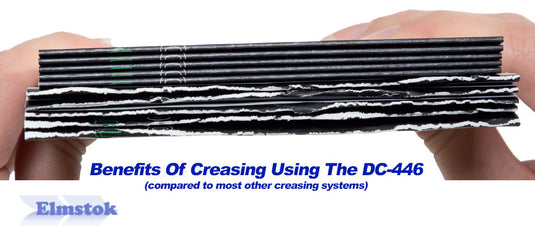

• The Duplo DC-446 is a fully automated, highly productive creasing machine ideal for creating greeting cards, brochures, flyers, CD/DVD covers and menus from digitally colour printed presses.
• **CONTACT US DIRECT FOR OUR BEST PRICE**
• The DC-446 can also have additional modules added to allow it to become a slitter & cutting machine.
• This machine can handle A4 sheets at 60 a minute.
• Ability to crease up to 20 times in 0.1mm increments.
• Touch screen set up panel stores and recalls up to 30 jobs saving time on repeat product types.
• A 100mm feed tray and 110mm delivery tray enables the user to leave the DC-446 unattended.
• The suction feed removes the risk of marking with an optional air knife to help separate the sheets ahead of feeding if static is an issue.
• Skew and shrinkage adjustments compensate for any image placement issues.

• Paper Type: Uncoated paper, coated paper, laminated paper Feeder C
• apacity: 100mm (exit tray 110mm)
• Feeder Type: Top Feed/ 8 Belt Suction
• Feeder Speed:
• A4 SEF (1 Crease) @ 60 sheets per min
• A4 SEF (2 Creases) @ 31 sheets per min
• A3 SEF (1 Crease) @ 39 sheets per min
• A3 SEF (2 Creases) @ 29 sheets per min
• A$ LEF perforate or slit only @ 92 sheets per min
• Number of Creases: Up to 20 creases per document across the paper direction
• Crease Depth Adjustment: 3 steps (from control panel)
• Tolerance of Crease: +/- 0.3mm Input Paper Size: Min- 140 x 150mm, Max - 330mm x 670mm
• Input Paper Weight: Min - 110gsm, Max - 350gsm..
• Paper Curl within +/- 3mm Memories: 30 Minimum
• Repeat Distance: 0.1mm
• Options: Perforators (15 teeth/inch),Slitters, Air Knife, Double Detection, Long Paper Tray, Cabinet.
• Dimensions (L x W x H): 1262 x 618 x 573mm (1090 with optional cabinet)
• Power Supply: 230V AC, 50Hz,
• Power Consumption 160W, 0.6A
• Weight: 79kg (114kg with optional cabinet)
