Pre-owned Uchida VS-200 2-Head Electric Paper Drill

DESCRIPTION

• A previously used, second-hand, Uchida VS-200 twin-head (2 spindles) electric paper drilling machine.
• Previously used by a well known UK terestrial television company, for actors scripts.

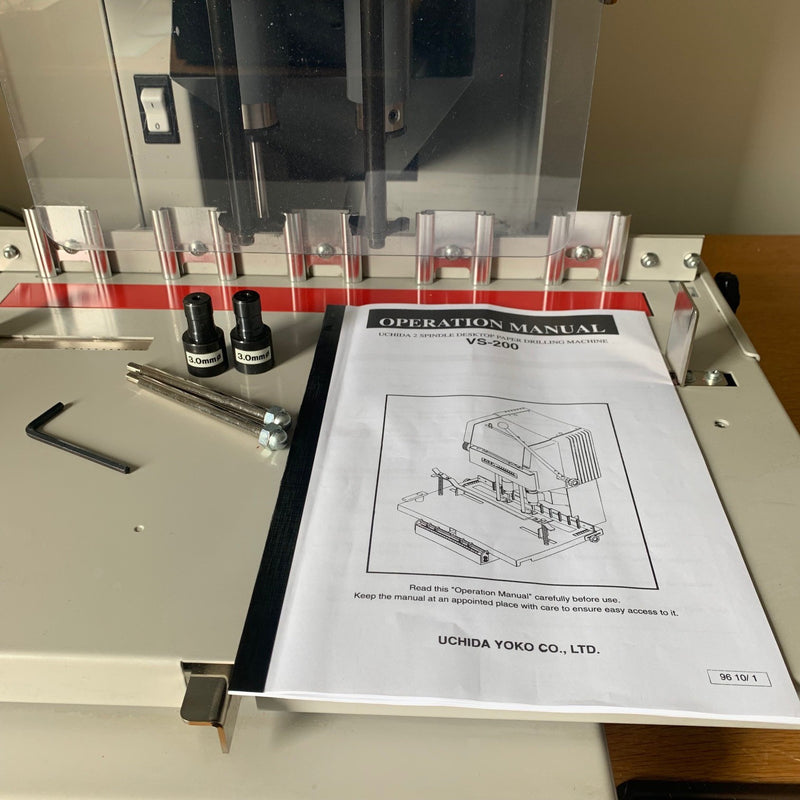

• In very good working order. Includes 2 'brand new' 6mm standard drill bits fitted (other types and sizes of drill-bits can be purchased from ourselves if required).

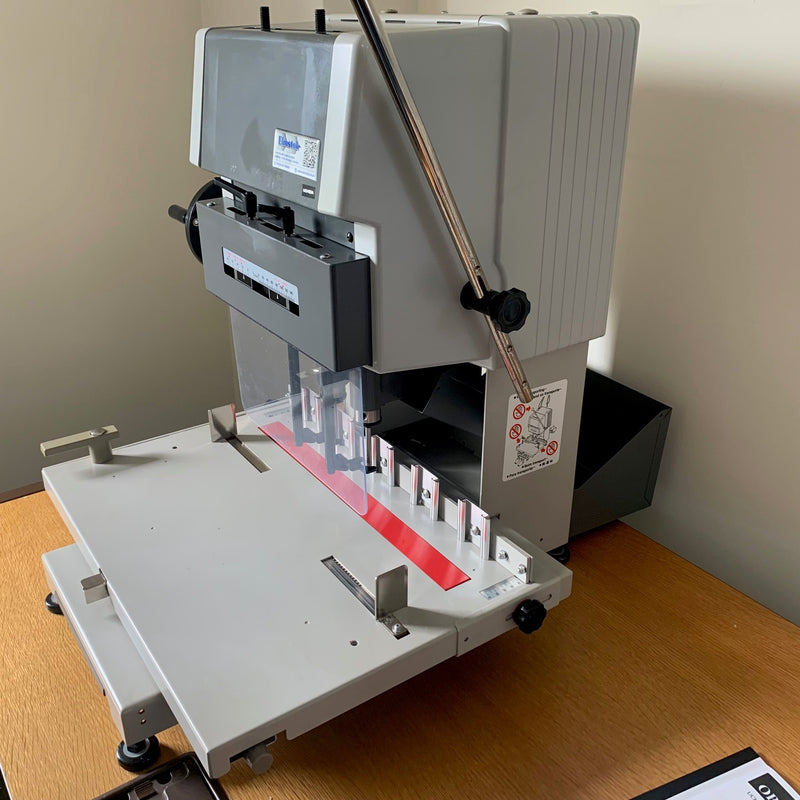

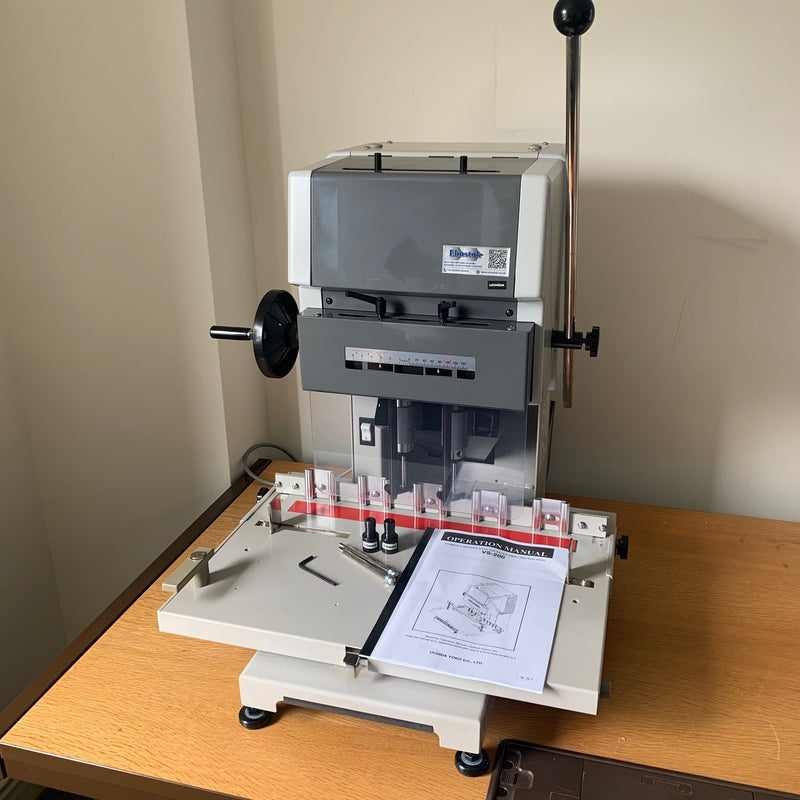

• In excellent condition, as shown in photo gallery.
• With programmable table, and adjustable drill-head distance, which enables you to drill various hole patterns on paper, card, vinyl, and various other types of work (i.e. some textiles, etc.).
• The VS-200 is a high performance, table-top, electric paper drill with double-head, twin-spindle.
• With adjustable back margin of between 5-60mm, which can help cover most drilling demands.

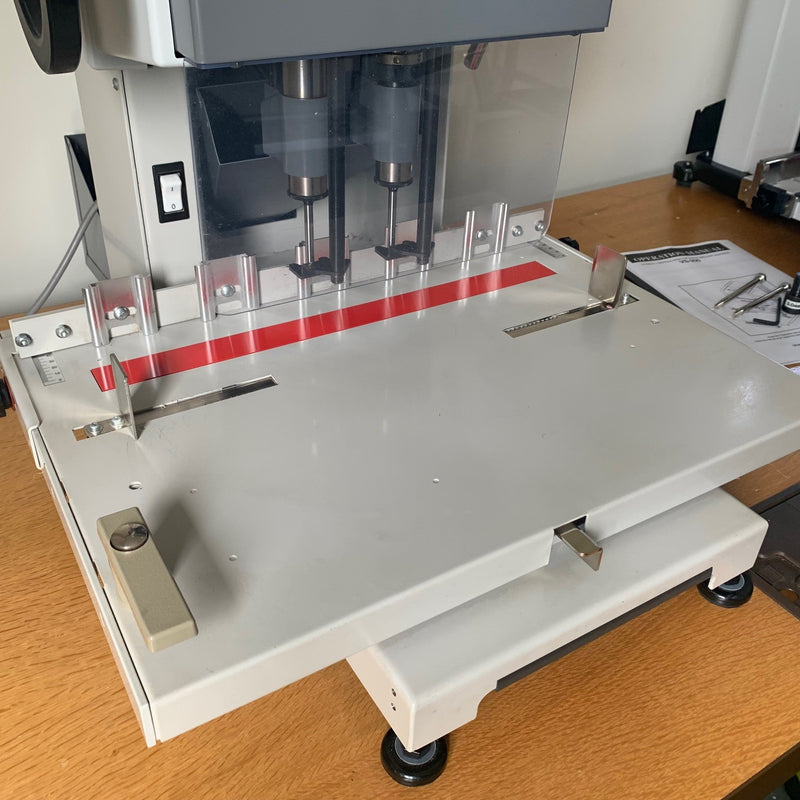

• The sliding table ensures that the paper is always correctly positioned, while a selection of pitch phase programmes ensures that the right option of drill is made for each choice of application.
• Pre-programmed pitch bar - two, three, four-hole drilling, and other popular hole patterns.
• Self-centering guides for accurate paper position.

SPECIFICATION

• Drilling thickness: 50mm paper stack height.
• Compatible drill bit sizes: 3-13mm.
• Adjustable back margin: 5-60mm.
• Working width: 420mm maximum paper length (A3 longitudinal).
• Head distance: 40-142.5mm.
• Paper waste disposal at rear of machine.
• Power source: 110, 120, or 230VAC/50-60Hz, single-phase.
• Power consumption: 300W. Table size (W x D): 540 x 310mm.
• Dimensions of machine (W x D x H): 570 x 753 x 930mm.
• Dimensions excluding handle and waste basket (W x D x H): 570 x 580 x 650mm.
• Weight: 65kg.
• Please note: there will be an additional pallet delivery charge, on top of the normal delivery cost, for this product due to weight & size.
