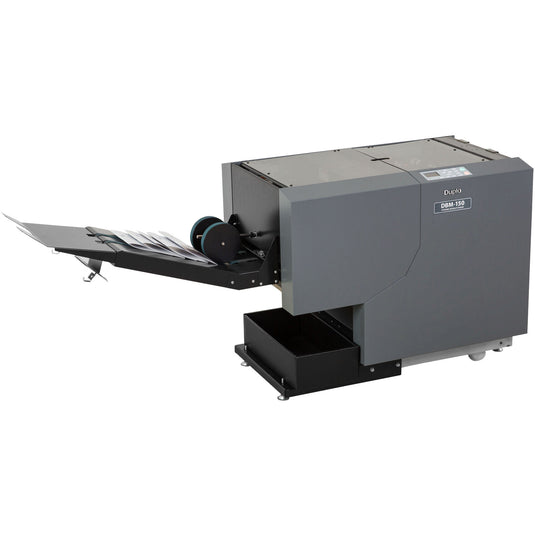

- The Duplo DBM-150 is the smallest fully automatic booklet maker and trimmer in the current market.
- Compact, but has all the features of larger booklet systems.
- The DBM-150 is a great addition for both digital and offset printers
- Features a LCD control panel so no manual adjustments needed making it user friendly Can be used for side stapling, corner stapling, folding and saddle stapling as well as fold only option
- Fast production speed: produces up to 2400 books per hour
- The trimming position can be adjusted from 1mm to 20mm High modular systems can be linked to the DSC-10/20, DSF-2200 and DFC-100 collators and sheet feeds
- Machine dimensions: 560mm (D), 1600mm (W), 710mm (H).
- Booklet size: Saddle stapling and folding 210mm to 460mm (L), 120mm to 320mm (W)
- Standard size: A5 SEF, A4 SEF, A4 LEF, A3 SEF, A3 SR SEF, B5 SEF, B4 SEF, LGR SEF, LGL SEF, LTR SEF, LTR LEF, STMT SEF
- Side stapling:180mm to 231mm (L) 200mm to 320mm (W)
- Standard size: A4 LEF, B5 LEF, LTR LEF - (corner stapling): A4 LEF, LTR LEF
- Paper type: 64 to 127.9gsm (fine quality), 104.7 to 127.9gsm (art/coated) within 300gsm (cover, fine/coated)
- Stapling thickness: within 2.5mm (maximum of 25 sheets fine quality) within 2.0mm (maximum 20 sheets coated)
- Maximum process speed: 2400 sets per hour Stapling width: 70, 108, 160, 258 and 276mm (2.76, 4.25, 6.30, 10.16 and 10.87inch)
- Trimming waste: 1 to 20mm
- Number of sheets that can be trimmed: 4 to 50 sheets Staple capacity: 5, 000 staples per cartridge
- Detecting function: paper jam, staple near empty, corner and side staple kit detection, cover open/close, knife stop position error, motor overload detection, folder roller gap
- Net weight: 137kg
Delivery Fees
We at Elmstok can deliver and ship a wide range of our document presentation and finishing products both within the UK as well as Internationally.
If you can not see the country you are looking for then please contact us for a quotation by either emailing us at sales@elmstok.co.uk or using our online chat feature.
If you are located within the UK then please select your delivery option during the checkout process. All prices exclude 20% VAT.
Delivery |
Price |
Standard UK Mainland-Only (2-5 working-days) | £12.00 |
Next-Working-Day UK Mainland-Only Delivery (orders placed before 14:00 GMT) | £15.00 |
N.I., Isle Of Man, Channel Isles, Scottish Highlands & Isles Only (2-3 days) Up To 30kgs Only | £27.00 |
Before 9am UK Mainland-Only (orders placed before 14:00 GMT) | £48.00 |
Before 12 Midday UK Mainland-Only (orders placed before 14:00 GMT) | £36.00 |
UK Mainland-Only Pallet (Over 30kg) | £75.00 |
International (Worldwide) - Contact Us Direct For Rates | Contact |
Returns
All goods are non-returnable, except for defects in manufacturing. All discrepancies, loss or damage must be made within 24 hours, and returned to us within seven days of receiving the goods.
A 30% handling fee will be charged on all goods returned, plus any delivery costs that were charged for sending the item/s out by us.
To exercise the right to cancel, you must first contact us by post or email of your decision to cancel your order before returning your product(s).
We cannot accept refunds for goods which are made to your specification or are personalised.
For full details please see our terms and conditions page or contact us.
